Description
Innovative Thermal-Sensing Motion Detection Technology
This system features Swann’s True Detect PIR Thermal Sensing technology to reliably detect heat-generating moving objects, such as people, large pets & cars. With more accurate motion detection you have more reliable notifications & recording, eliminating false triggers such as falling leaves, bugs, rain & more, saving you hard drive space & playback time.
Capture amazing detail with 3 Megapixel resolution, which has 52% more pixels than Full HD 1080p (2MP). Identify faces, number plates and clothing patterns with crystal clear images and enjoy peace of mind 24/7.
Â
Cameras
This home security system comes with a massive 2TB hard drive & 4 weatherproof PRO-3MPMSD security cameras built tough for the outdoors or indoors. See in the dark up to 30 metres with the camera’s powerful infrared night vision.
The cameras come with BNC cables. If your property has existing BNC cables, we advise you to test your new system for 2 days with the existing cables before full installation. For optimum performance, we recommend you use the new cables supplied.
Expand your home security system by adding up to 4 more cameras for a complete 8 channel CCTV system, ideal for small homes & small businesses
Â
Convenience
The HomeSafe Views app ensures you’ll always be connected to your home or business, allowing you to see the cameras on your phone or tablet.Â
You can even search the recordings to play them back, wherever you are in the world.
Â

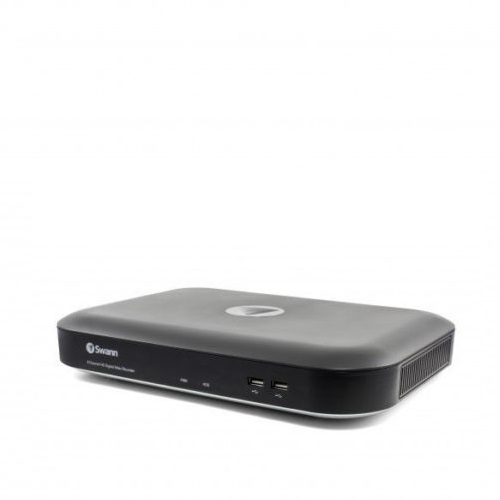

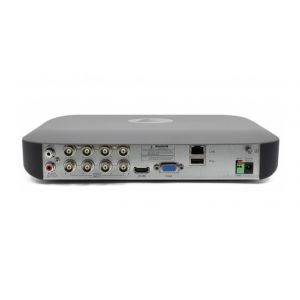

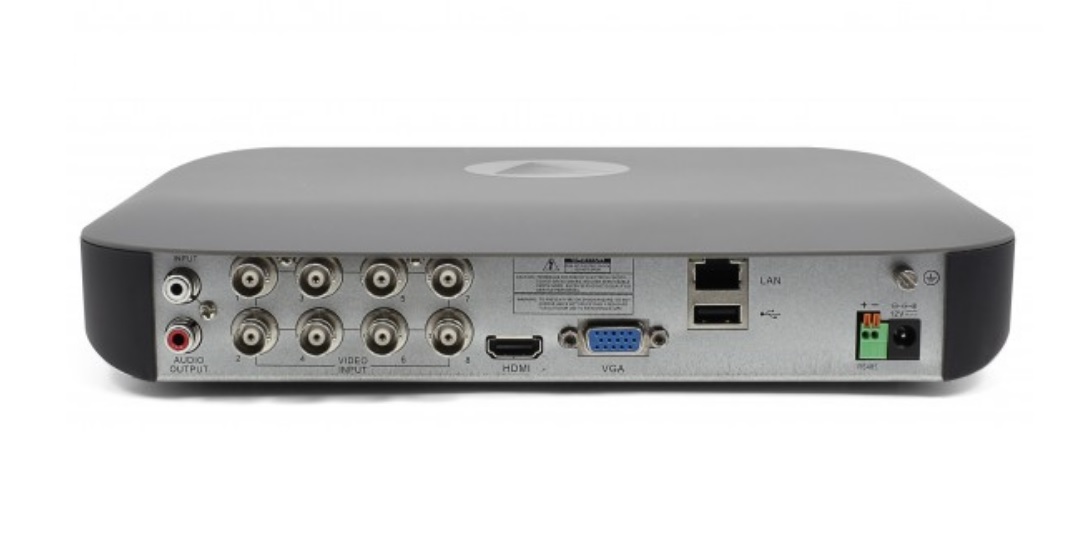

DVR-4780 8 Channel Digital Video Recorder
Â
Video
Video Input   8 Channels
Video Outputs  VGA, HDMI DisplayÂ
Resolution    Up to 1080p
Â
Audio
Audio Input  1 x RCA
Audio Output 1 x RCA
Â
Recording
Recording Resolution Up to 3MP
Hard Drive Support  Includes 1TB SATA HDD (supports up to 6TB)
Â
Connection
Network Interface RJ45 Port x 1
USB Interface  USB 2.0 x 3 (2 on front, 1 on back)
Â
Software
Computer Operating System Windows, Mac OSÂ
Internet Viewing Home Safe View App
Handheld Device Supported iOS, Android, 3G/4G Smartphones & Tablets
Â
General
DimensionsÂ
(WxDxH)10.83 inches x 8.66 inches x 2.09 inches
275mm x 220mm x 53mm
Â
Â
PRO-3MPMSD Thermal-Sensing Security Camera
Â
Video
Video Quality
3MP (1.5x better than 1080p)
Viewing Angle
64°
Night Vision
Night Vision Distance
Up to 100ft
30m
General
PIR Thermal / Motion Sensor
Yes, True Detect
PIR Sensor Range
Up to 32ft
10m
Indoor / Outdoor
Indoor or Outdoor, IP66 rated
Audio Microphone
No
Operating Temperature
-4°F ~ 122°F
-20°C ~ 50°C
Body Construction
Aluminum
Dimensions (Diameter x Height)
3.94 inch x 3.94 inch
100mm x 100mm
Â

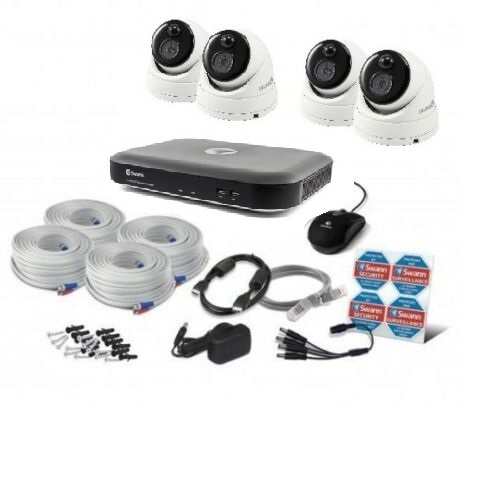

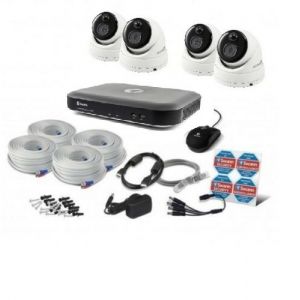

Box Contents
Â
DVR-4780 8 Channel DVR with 2TB Hard Drive
3MPMSD Cameras x4
BNC Cables x4
Ethernet Cable
HDMI Cable
Power Adapter and Splitter
Mouse
Quick Start Guide
Theft Deterrent Stickers
