Description
What features do the Swann PRO-1080MSD dome cameras have?
The Swann PRO-1080MSD captures footage in 1080p HD resolution, and the built-in state of the art PIR motion sensor picks up people, cars and large pets through heat detection. Protect your property and loved ones by recording stunning footage with the 2.1 megapixel camera, and capture almost everything in sight with the 85 degree vertical field of view. This camera automatically starts recording every time motion is detected by the PIR sensor, saving you hard drive space and playback time.Â
The highly accurate motion detection will eliminate false triggers caused by wind, falling leaves, bugs and rain, giving you more reliable notifications and activity-triggered recording. The latest infrared cut filter is used along with powerful infrared LEDs to produce night vision of up to 100 feet (30 metres) in ambient night time lighting, giving you 24-hour surveillance.Â
Where can I use my Swann PRO-1080MSD cameras?
Each camera is built from sturdy polycarbonate suitable for both indoor and outdoor use. With a waterproof rating of IP66, this camera will still be able to function with heavy rain or snow. The included 18 metre BNC cable can be threaded through the mounting stands for extra protection from severe weather conditions.Â
How do I connect my cameras to my existing CCTV system?
The Swann PRO-1080MSD makes a perfect addition to Swann’s 45/47 Series HD DVR Security System. This security camera is also compatible with other Swann DVRs that have a BNC connections and can support a resolution up to 1080p. A simple plug and play set up is all that is needed to get your cameras working, a handy operating instruction manual is included to help you. Everything you need to get set up comes included, including 18m (60ft) BNC cables, mounting screws and plugs. All you will need is the right tools.Â
Â
Products Compatible with this camera
DVR-4780
DVR-4980
DVR-4575
DVR-4580
DVR-4575
DVR-1600
Â
Specification
|
 |
Type
|
Heat-Sensing HD Security Camera
|
Analogue
|
Yes
|
Hi Def Analogue
|
Yes
|
IP Compatibility
|
No
|
Bullet
|
No
|
Dome
|
Yes
|
Pan Tilt Zoom
|
No
|
Indoor
|
Yes
|
Outdoor
|
Yes
|
IP Rating
|
IP66
|
BNC
|
Yes
|
Ethernet Connection
|
No
|
Cable Length
|
18m / 60ft BNC cable
|
Image Sensor
|
N/A
|
Camera Resolution
|
Up to 1080p
|
Lens Size
|
N/A
|
Zoom Magnification
|
N/A
|
Viewing Angle (Horizontal)
|
85°
|
Viewing Angle (Vertical)
|
N/A
|
Day/Night Mode
|
Yes
|
Night Vision Range
|
Up to 100ft / 30m
|
Number of Infra-Red LEDs
|
N/A
|
LED Lifepan (Average)
|
N/A
|
Minimum Illumination Required
|
N/A
|
One Way Audio
|
No
|
Two Way Audio
|
No
|
Remote Control via Mobile Device
|
No
|
Push Alerts to your Mobile Device
|
No
|
Windows Compatible
|
No
|
Apple iOS Compatible
|
No
|
Android Compatible
|
No
|
ONVIF
|
N/A
|
Wireless
|
No
|
Frequency
|
N/A
|
Digital
|
N/A
|
Wi-Fi Enabled
|
No
|
Operating Power
|
12V DC
|
Operating Temperature
|
-30°C - 50°C
|
Backlight Compensation
|
N/A
|
White Balance
|
N/A
|
Gain Control
|
N/A
|
Â

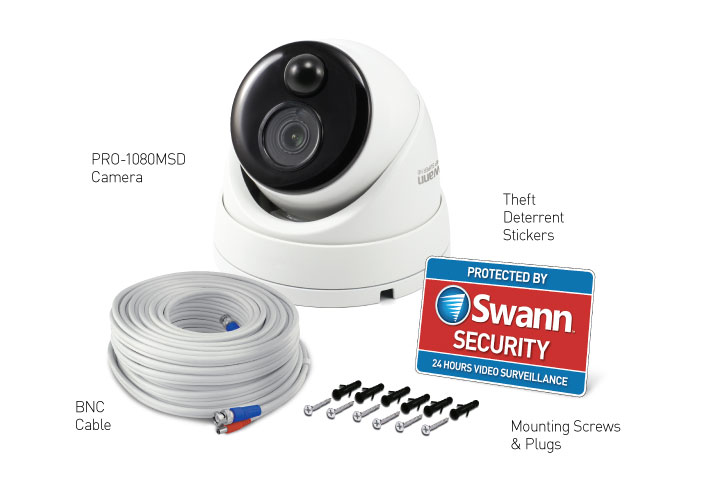

Box Contents:
- PRO-1080MSD Cameras x 1
- BNC Cable (60ft / 18m) x 1
- Power Splitter Cable
- Mounting Screws & Plugs
- Theft Deterrent Stickers
Â
PLEASE NOTE: THIS CAMERA DOESNT COME WITH POWER SUPPLY. IT COMES WITH A POWER SPLITTER CABLE TO ADD TO YOUR EXISTING CCTV SETUP.
