On- Screen Display (OSD) Menu Control:
Â
OSD Controls
Digital user controls are located on the front bezel, to the left of the power on/off pushbutton. Adjustments are made in conjunction with the OSDs.
Â
Monitor controls and features include:
Button 1: Power Switch: Turn the monitor on/off
Â
Button 2: Enter/OK key: active main menu while no OSD display, enter next level on main menu or sub menu status, or enter last level on adjustment bar. Continued pressing 10 seconds will lock menu or un-lock menu.
Â
Button 3: Exit / signal switch: Exit current OSD return to last level. If there is no any OSD, it is VGA/HDMI/DP switch. Pressed till 10 seconds, it will enable/disable the DDC/CI.
Â
Button 4: Brightness Adjustment/ Increase: If there is no any OSD, it is the short cut of brightness adjustment bar. Or it will increase current value of bar, or move to next item of menu.
Â
Button 5: Auto Adjustment / Decrease: If there is no any OSD, it is auto configuration. Or it will decrease current value of bar, or move to last item of menu.
Â
OSD Controls
·        Brightness/Contrast/DCR
·        Image Position
o   Horizontal position
o   Vertical position
·        Image setup: -
o   Automatic Setup
o   Manual Setup
·        Image properties:
o   Color
§ Mode 1 (Preset –7200K , sRGB, 6500K, 9300K)
§ Mode 2 (Custom – R,G,B, Save), (Natural , sRGB, Reddish , Bluish)
o   Input Signal: VGA, HDMI, DP
o   Scaling: Original AR, Full Screen
o   Over Drive: On, Off
·        Options:
o   Information
o   Language Selection
o   Menu Position – Default, Custom (H / V)
o   Reset – Cancel, O.K
o   Accessibility – Button Repeat Rate (Off, Default, Slow), Menu Timeout (5 to 60 sec)
o   DP select – DP 1.1, DP 1.2 (Default on DP1.2 )

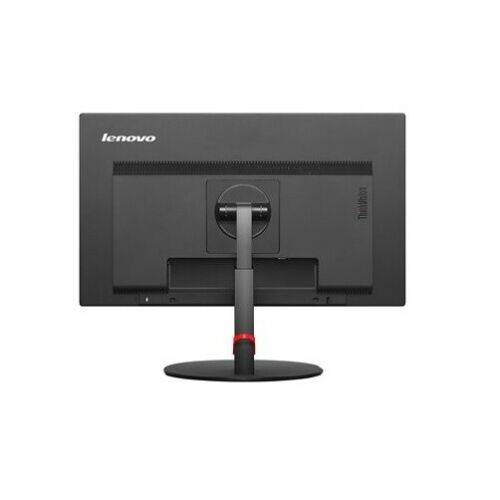

o   VESA Mount - 100 x 100 mm

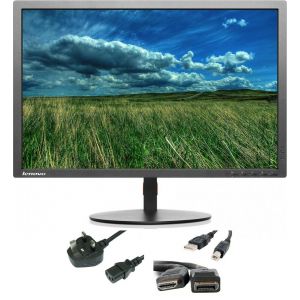

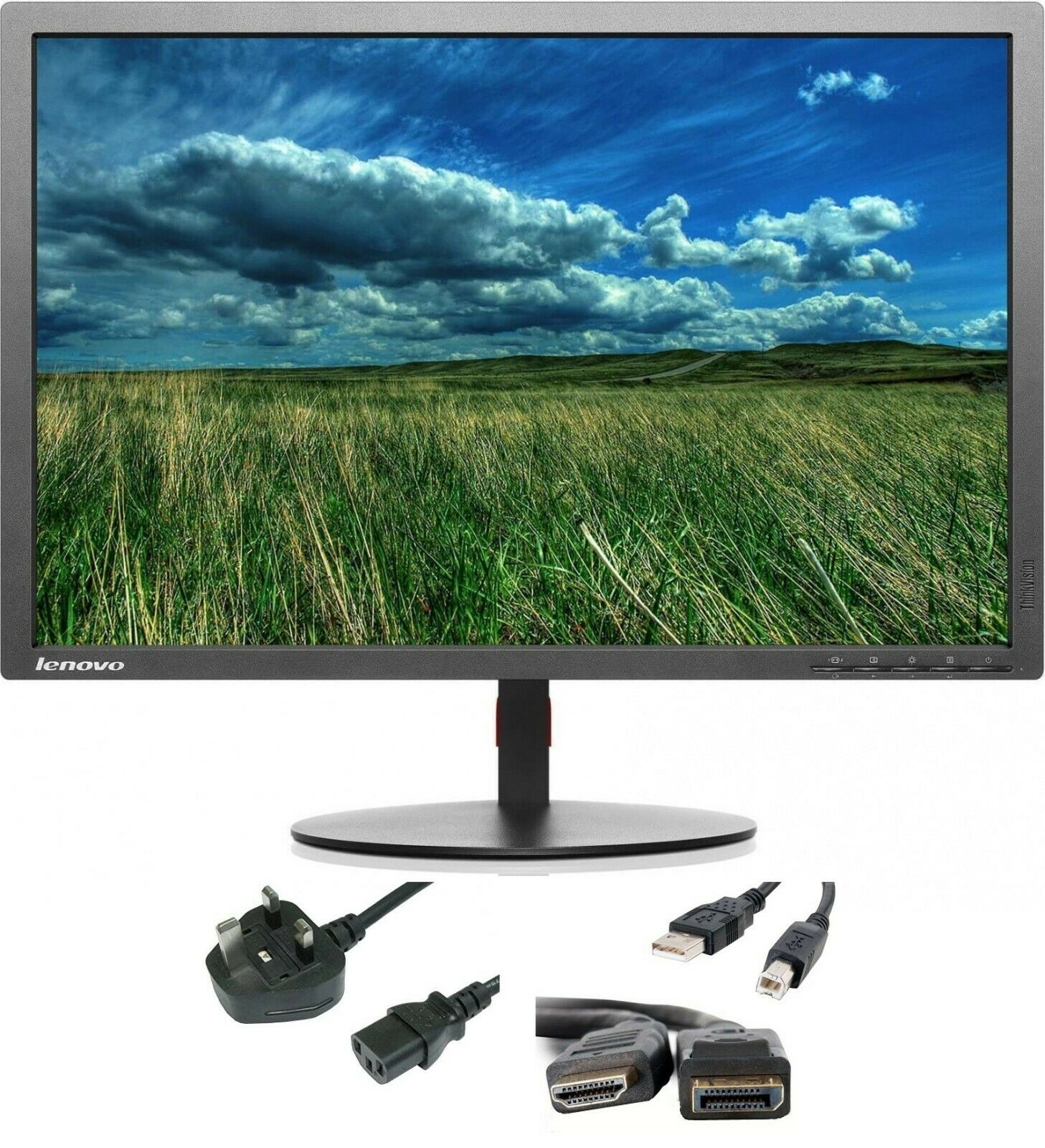

Box Contents:

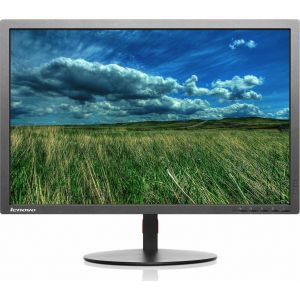

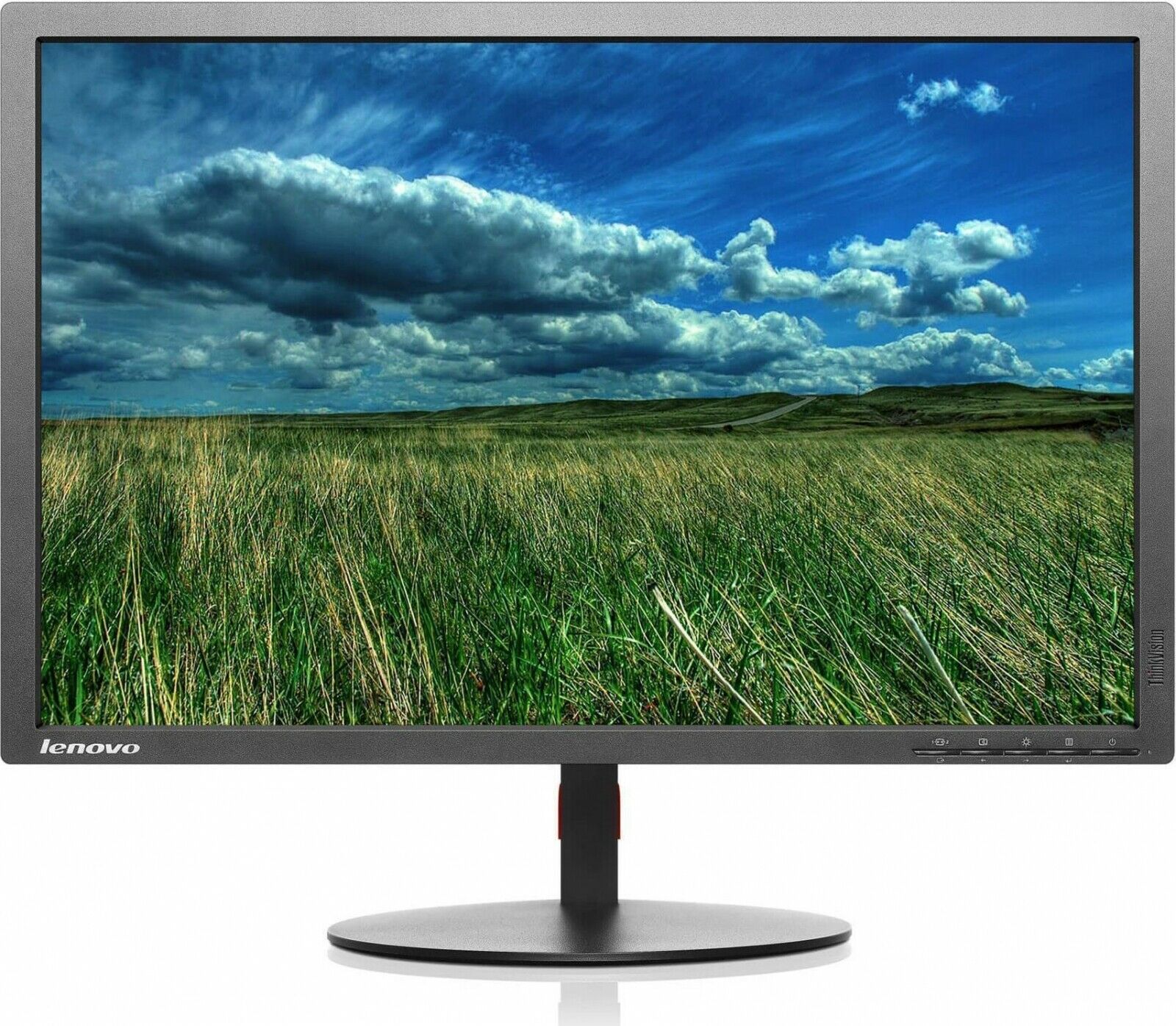

Lenovo ThinkVision T2324PA 23 inch Monitor with stand
Cables: Power, HDMI to Displayport, USB
|
