- Print methods: Direct thermal or direct thermal/thermal transfer
- Odometer for printer length tracking
- Unicode compliant for multi-language printing
- Reset feature button
- Construction: ABS double-walled casing
- OpenACCESS design for easy media loading |
Overview
|
Product Name: |

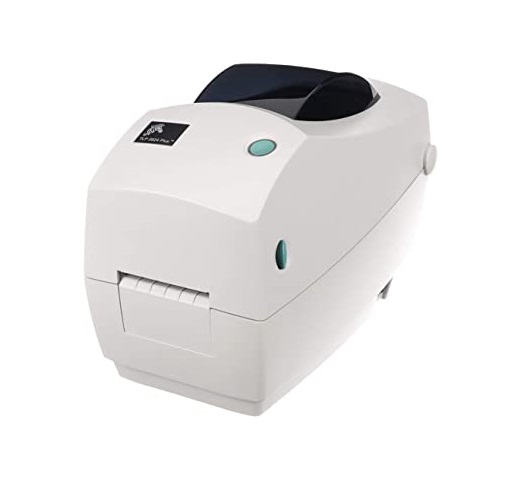

Zebra TLP 2824 Plus Monochrome Desktop Thermal Printer 56mm print labels USB |
|
Product Code: |
TLP2824 |
| Pack Size: |
1 |
| Condition: |
Brand New
|
| Warranty: |
Yes: 1 Year |
|
Despatch Time: |
Usually ships same working day* |
|
Availability:
|
IN STOCK |
| Category: |
Printers |
We Also Recommend These Products:
only £579.99
See More Below:
Description

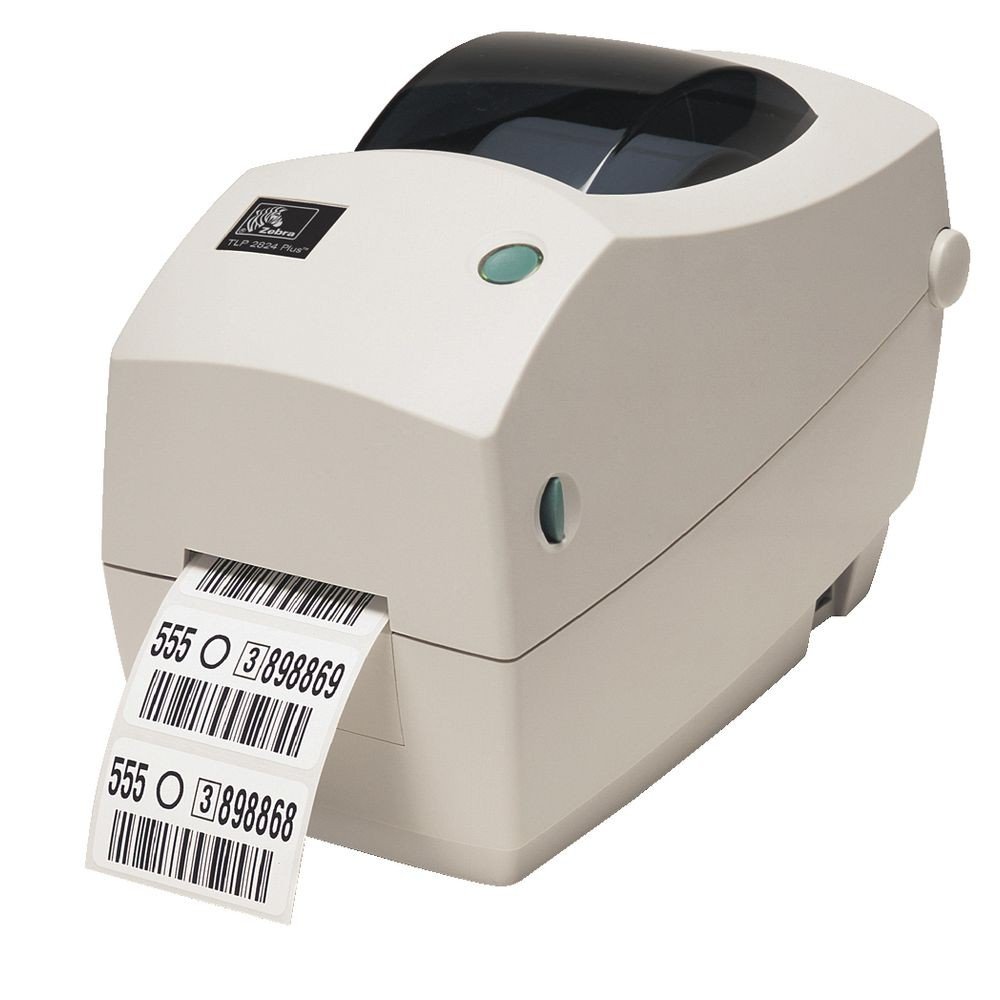

The sleek and compact TLP 2824 Plus bar-code-label printer, for print widths up to 56mm, brings powerful performance to applications requiring both direct-thermal and thermal-transfer printing. It includes a 32-bit RISC processor for faster formatting and first-label-out, an auto-sensing serial port, and co-existent EPL and ZPL programming languages.
Available options include additional memory, 10/100 Ethernet, label dispenser, and cutter for receipts, paper or tags. Its ease of use including Zebra Setup Utilities software for simple setup, OpenACCESS design with clear media window for simple media loading and monitoring, and a factory reset button results in increased workplace efficiency. Offering flexible connectivity and options, the TLP 2824 Plus printer fits easily into a variety of applications.
- Print methods: Direct thermal or direct thermal/thermal transfer
- Odometer for printer length tracking
- Unicode compliant for multi-language printing
- Reset feature button
- Construction: ABS double-walled casing
- OpenACCESS design for easy media loading
- 32 bit RISC processor for high throughput
- Auto calibration of media Head-up sensor
- Zebra Setup Utilities for printer setup and configuration
- Standard tear-off mode
- Certified Microsoft Windows drivers
Print
|
Printer Resolution
|
203 dpi (8 dots/mm) Print
|
|
Speed Monochrome
|
Up to 102mm per second Mono Print
|
|
Print Width
|
width: (56mm) 2.2 Inch
|
|
Printer Resolution True
|
203dpi x 203dpi
|
Interfaces
|
Interface Type(s)
|
USB & Serial
|
|
Serial Ports
|
1 x RS232 Serial port
|
|
USB Ports
|
1 x USB
|
System Specification
|
Memory (Maximum)
|
4MB flash; 8MB SD RAM
|
|
Flash (ROM)
|
4MB
|
|
Memory Size
|
8MB SDRAM
|
Media Handling
|
Paper Handling Input 1
|
Maximum Label & Liner: 990mm (39 inch)
|
|
Paper Handling Input 2
|
127mm (5 inch) O.D Roll
|
|
Media Supported
|
(black-mark optional), black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notch, notch sensing, notched, perforated, receipt, roll-fed, tag, tag stock
|
|
Paper Size
|
56mm x 991mm
|
Barcodes & Labels
|
Barcode
|
5712505428924
|
|
Supported Bar Codes/Symbologies
|
Linear: Codabar Code 11 Code 128 Code 39 Code 93 EAN-13 EAN-8 Industrial 2-of-5 Interleaved 2-of-5 Logmars MSI Plessey Postnet RSS-14 (limited, truncated, stacked) Standard 2-of-5 UPC-A and UPC-E with EAN 2 or 5 digit extensions UPC-E UPC-A EAN-14 Code 128 with subsets A/B/C UCC/EAN-128 UPC-A and UPC-E with 2 or 5 digit extensions EAN-8 and EAN-13 with 2 or 5 digit extensions Japanese Postnet MSI-3 German Post Code - 2 Dimensional: Codablock Code 49 Data Matrix MaxiCode MicroPDF417 PDF417 QR Code RSS / GS1 DataBar family (12 barcodes) Aztec
|
Physical/Dimensions
|
Technology
|
Thermal Transfer Label Printer
|
|
Case Colour
|
Grey
|
|
Dimensions
|
13.5cm (W) x 24.1cm (D) x 17.8cm (H) - Weight 1.6kg
|
|
Environmental
|
Operating Temperature 5 to 41-C - Humidity 10 to 90%
|
|
Product Type
|
Label Printer
|
|
Voltage/Power/Frequency
|
100 to 240VAC / 50 to 60Hz
|
Software
|
Printer Languages
|
EPL™ and ZPL®
|
|
Font Capabilities
|
16 resident expandable ZPL II bitmap fonts - One resident scaleable ZPL font - 5 resident expandable EPL2 fonts
|
More Features
|
Certifications
|
FCC VCCI C-TICK UL NOM CE IRAM AAMI
|
- Zebra TLP 2824 Plus Thermal printer
